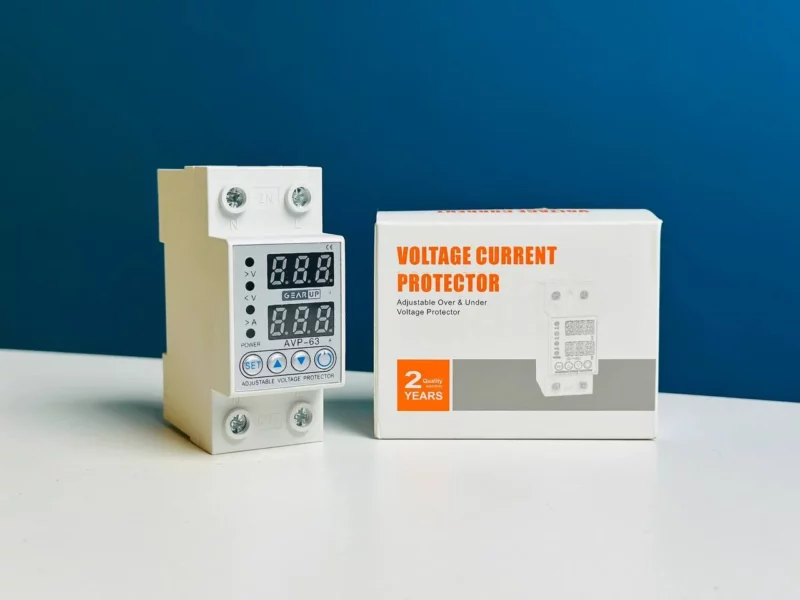

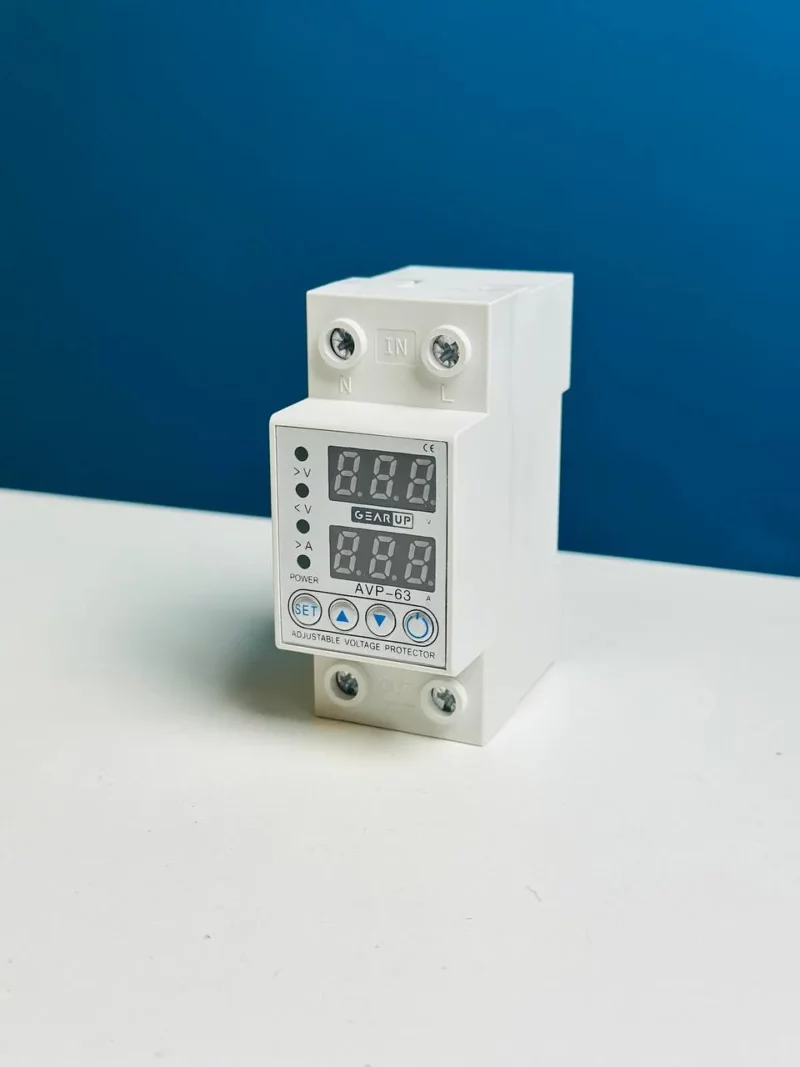

GearUP AVP-63 Automatic Voltage Protector-220V

GearUP AVP-63 Automatic Voltage Protector in Bangladesh

Get The GearUP AVP-63 Automatic Voltage Protector-220V at koddax Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

Warranty: 1 year (Burn and physical damage not applicable)

Key Functions

1. Protection Features
   • Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
   • Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
   • Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
   • Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
   • Fast Power-Down: Emergency cutoff (enabled via P-14).
2. Monitoring & Display
   • Real-time voltage display (AC/DC).
   • Real-time current display (AC only; DC mode shows voltage only).
   • Indicators for faults (>V, A) and normal operation (POWER).
3. Programmable Settings

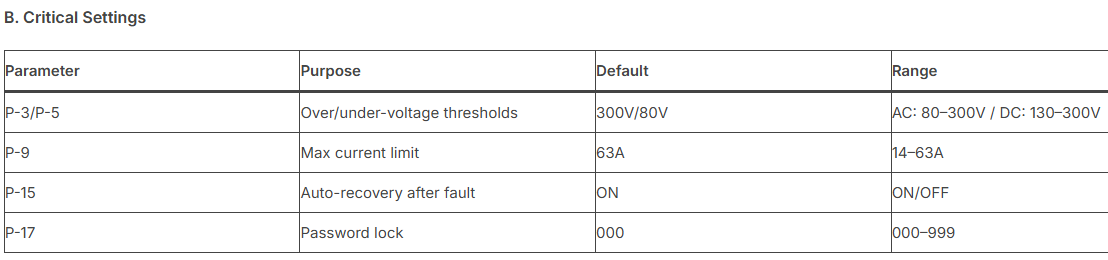

   • Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
   • Password protection (P-17) to prevent unauthorized changes.

3. Setup & Operation Guide

A. Initial Configuration

1. Power Connection:
   • Wire terminals (N-L) to AC/DC source within rated limits.
2. Menu Navigation:
   • Use front-panel buttons to adjust parameters (P-1 to P-17).

C. Calibration

• Voltage: Adjust via P-8 (±10%).
• Current: Calibrate with P-12 (±10%).
• Frequency (AC only): Fine-tune with P-13 (±2.5%).

D. Safety & Recovery

• Manual Reset: Required if auto-recovery (P-15) is disabled.
• Event Logging: Overcurrent counts (P-11) track fault history.

4. Usage Notes

• DC Mode: Current display disabled; only voltage monitored.
• Energy Saving: Enable P-16 to reduce idle power consumption.
• Altitude Warning: Performance may degrade above 2000m.

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
