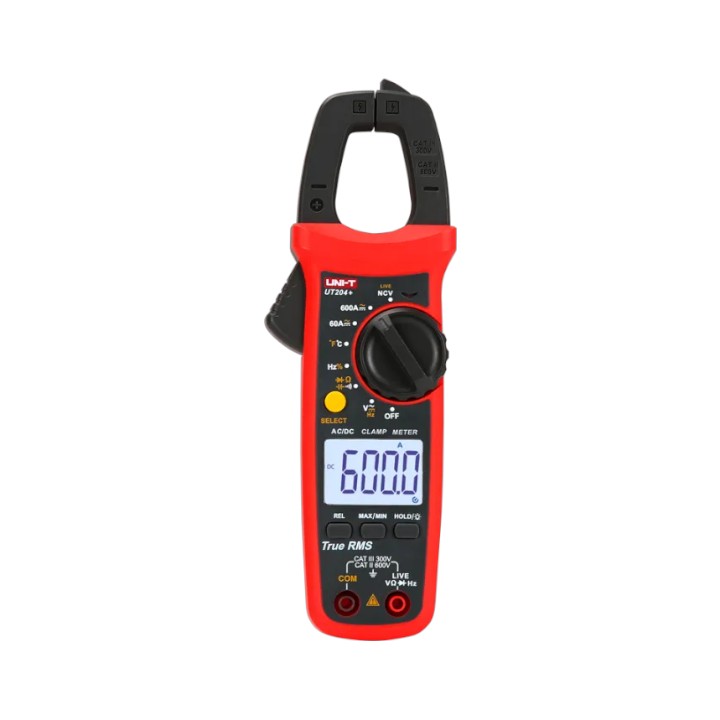

UNI-T UT204+ Digital Clamp Meter In Bangladesh
The UNI-T UT204+ Digital Clamp Meter in Bangladesh. Get the original products at the most affordable price at KODDAX and enjoy the quality with the promise of the best customer service in Bangladesh.
The UNI-T UT204+ is a professional-grade True RMS clamp meter designed for accurate and safe measurement of AC/DC voltage, current, resistance, capacitance, frequency, and temperature. Ideal for electricians, technicians, and DIY users, this meter offers non-contact voltage detection (NCV), a large backlit display, and multiple safety ratings for reliable performance in demanding environments.

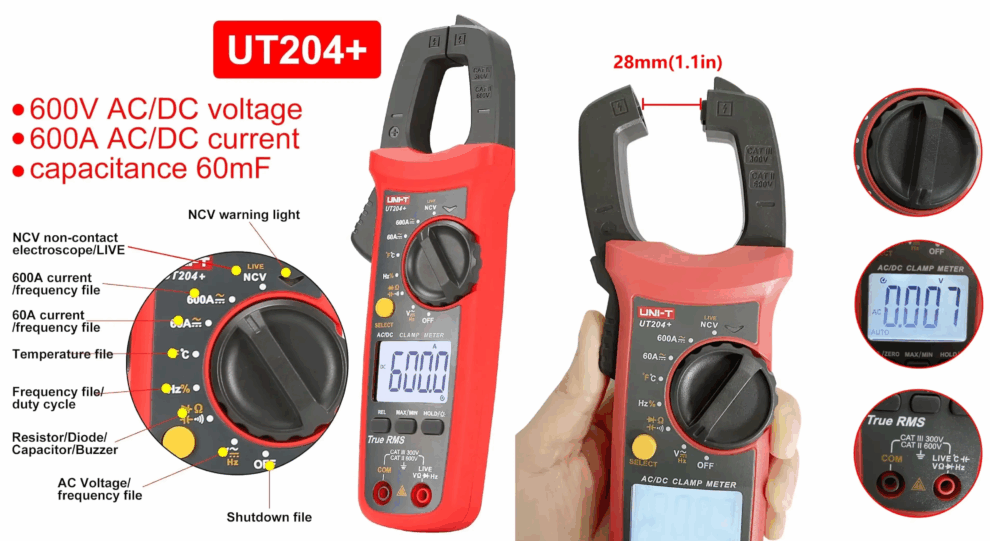

Features
True RMS for precise readings on non-linear loads
Measures up to 600A AC/DC current and 600V AC/DC voltage
NCV function for safe non-contact voltage detection
Temperature measurement with included thermocouple
Frequency and duty cycle analysis
Auto range and data hold functionality
MAX/MIN recording and ZERO reset
Large LCD screen with backlight for low-light use
CAT III 300V / CAT II 600V safety rating
Durable clamp with 28mm jaw opening
Specifications
Voltage Range: 600V AC/DC
Current Range: 600A AC/DC
Capacitance: Up to 60mF
Resistance: Up to 60MΩ
Frequency: Up to 10MHz
Temperature: -40°C to 1000°C
Display Count: 6000
Clamp Opening: 28mm
Safety Rating: CAT III 300V / CAT II 600V
Power Supply: 2 x AAA batteries
Dimensions: 215mm x 63mm x 36mm
Weight: Approx. 280g
How It Works
Rotate the dial to select the desired measurement mode (AC/DC current, voltage, resistance, etc.)
Use the clamp to measure current without direct contact by clamping around the conductor
Insert test leads into the COM and VΩHz ports for voltage, resistance, or frequency measurements
Activate NCV mode to detect live wires without touching them
Use the HOLD, MAX/MIN, and ZERO buttons to freeze or reset readings as needed
For temperature, connect the thermocouple and switch to the °C mode
